Triple Monitor Mount Stand

$599.00

In stock

Add to Wishlist
Free shipping for orders over $50
Weight N/A
Dimensions N/A

Мanufactured in USA

Designed, manufactured and assembled in USA

Lifetime warranty

On all metal parts

Money-back guarantee

Extended holiday return

Same day shipping

1-6 days fast delivery*

Real person support

We are here to assist you

Triple Monitor Stand Variation Description

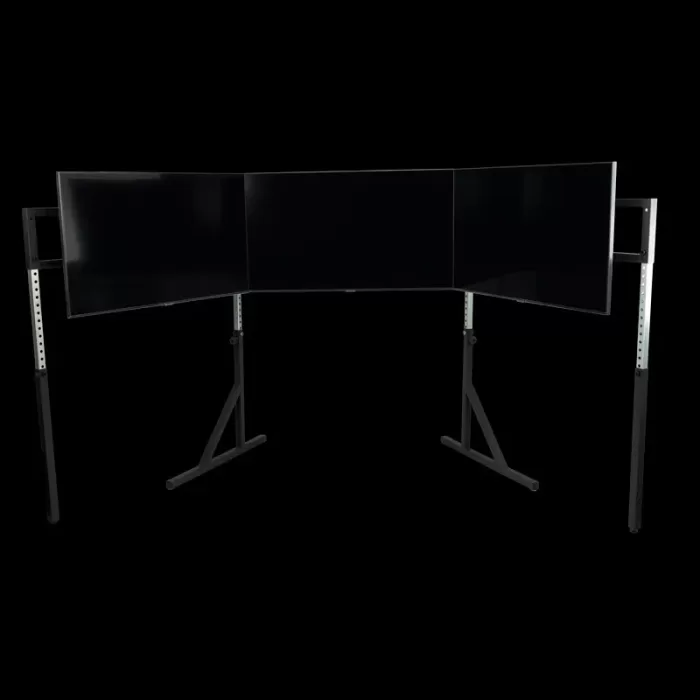

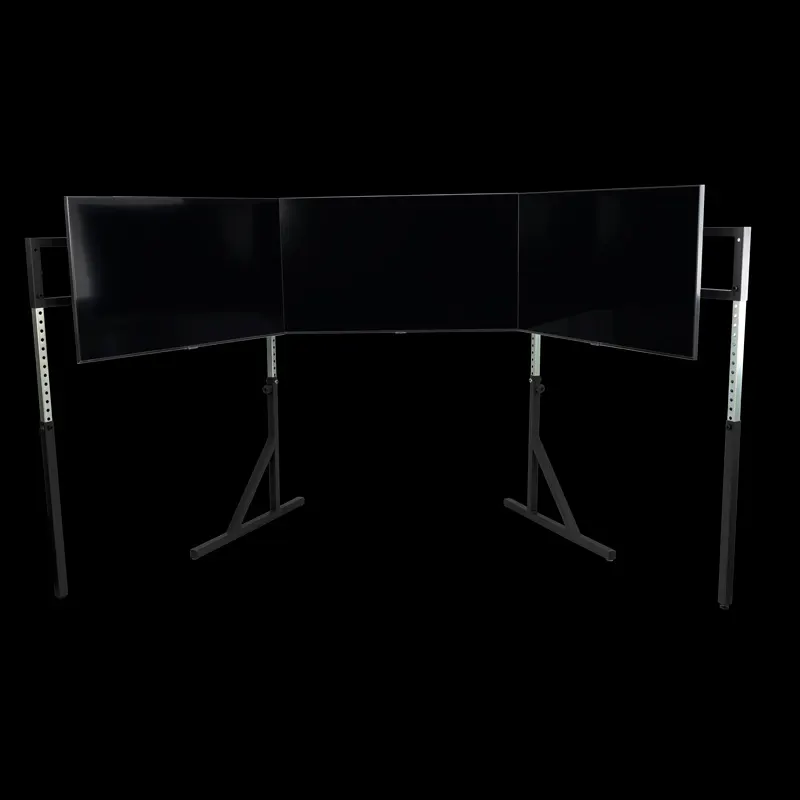

Triple Monitor Mount Stand (HD)

Over 100x100mm VESA Mount, 40-55 inch monitors or TVs

Stand has been tested with various TV sizes, curved or flat screens from 43″ to 55″ TVs.

Adjustable height, tilt and roll. Legs have independent turning axis for optimum stability and spread out to wrap around your sim racing cockpit or flight sim pit, achieving the best immersion and FOV (field of view).

For monitors mount or smaller-size screens, refer to our LD model monitor stand.

Triple Monitor Mount Stand 2nd Generation (LD)

For Monitors up to 100x100mm VESA Mount or 24, 27, 32, 34-39

Mount brackets are suitable for monitors with VESA mount up to 100x100mm or M4/M5 mounting hardware.

Stand has been tested with various common monitor sizes, curved or flat screens such as 3×24″, 3×27″, 3×32″, 3×34″, 3×38″

Fully adjustable frame to achieve optimal FOV (field of view) and align all three monitors’ bezels to perfection.

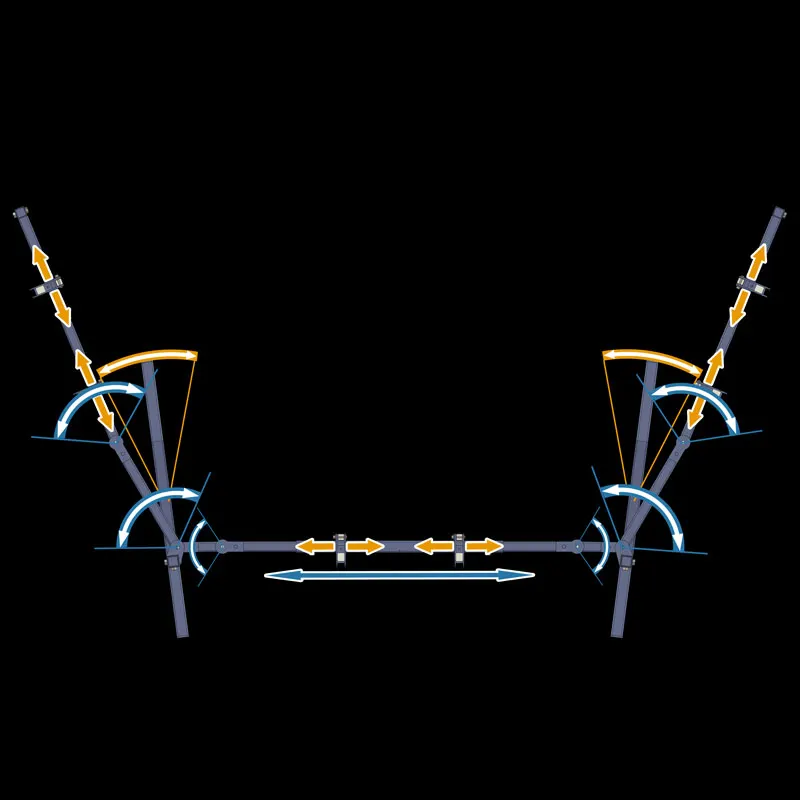

Adjustable height, legs spread, tilt, roll, angle and distance between each monitor.

Fine-tune for precise alignment between center and side monitor bezels.

Larger TVs require our heavy-duty mounting brackets, model HD.

FAQs

Framework can handle larger screens than 39″ however mounting brackets in the LD kit are meant for mostly monitors with VESA mount pattern up to 100x100mm which is pretty much industry standard for all modern monitors. LD kit also includes only M4 mounting hardware as opposed to M6 and M8 size hardware for HD model. If you are adding 3x 55″ TVs or monitors, they all require larger VESA mount pattern such as 200×200 or 200x400mm and larger. With said larger pattern and larger screens, you need to use our model HD triple stand.

No weight limit but the size is up to 65″. This stand is heavy duty.

Assembly Manuals

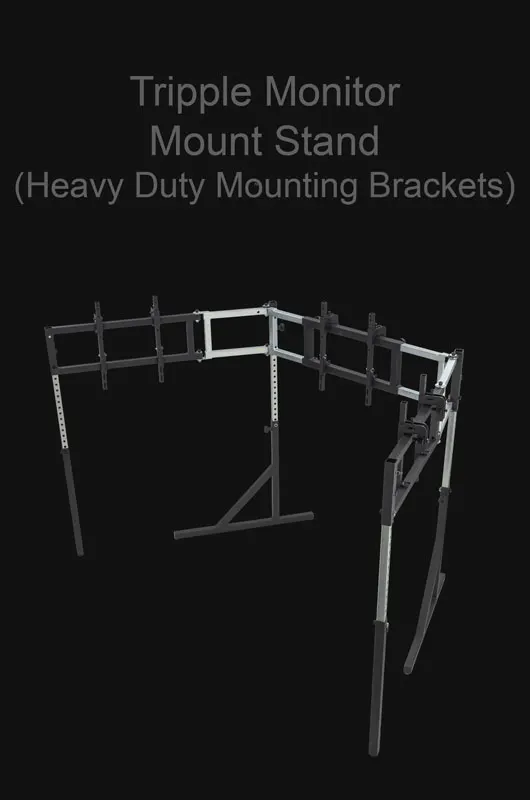

Triple Monitor Mount Stand (HD)

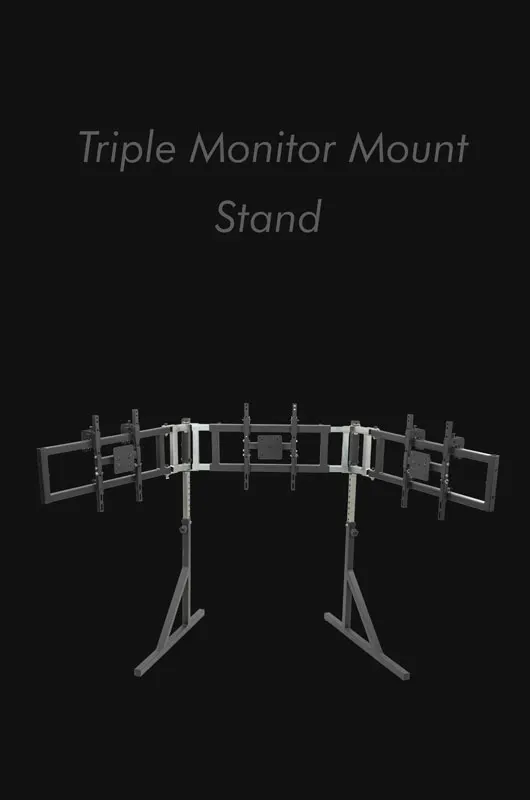

Triple Monitor Mount Stand (LD)
