Single Monitor Mount Stand

$219.00

Monitor Mount Floor Stand for Racing and Flight Simulators

Add to Wishlist
Free shipping for orders over $50
Weight N/A
Dimensions N/A

Мanufactured in USA

Designed, manufactured and assembled in USA

Lifetime warranty

On all metal parts

Money-back guarantee

Extended holiday return

Same day shipping

1-6 days fast delivery*

Real person support

We are here to assist you

Single Monitor Mount Stand Variation Description

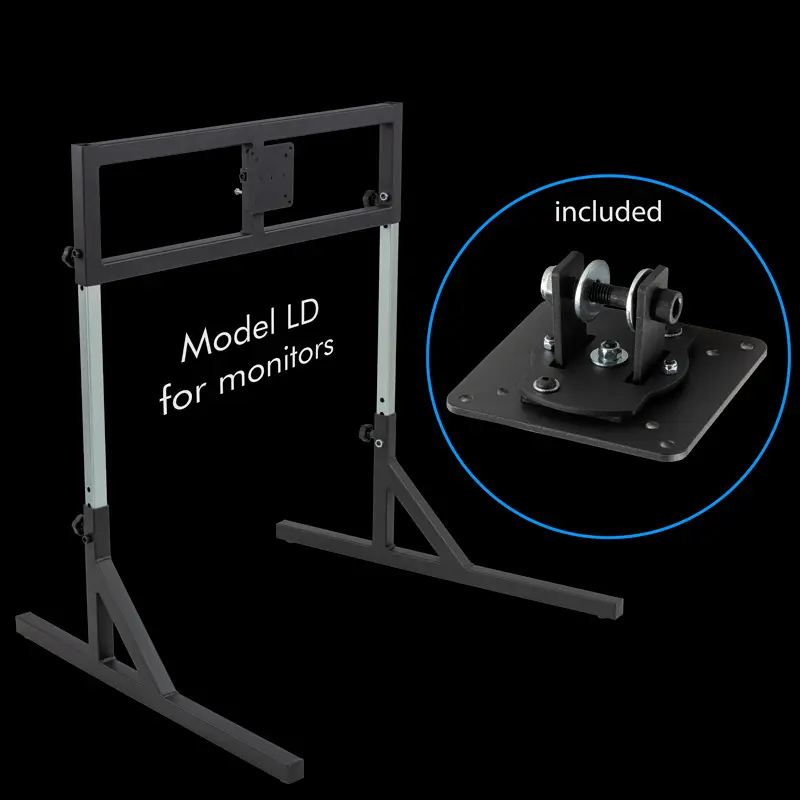

LD Model

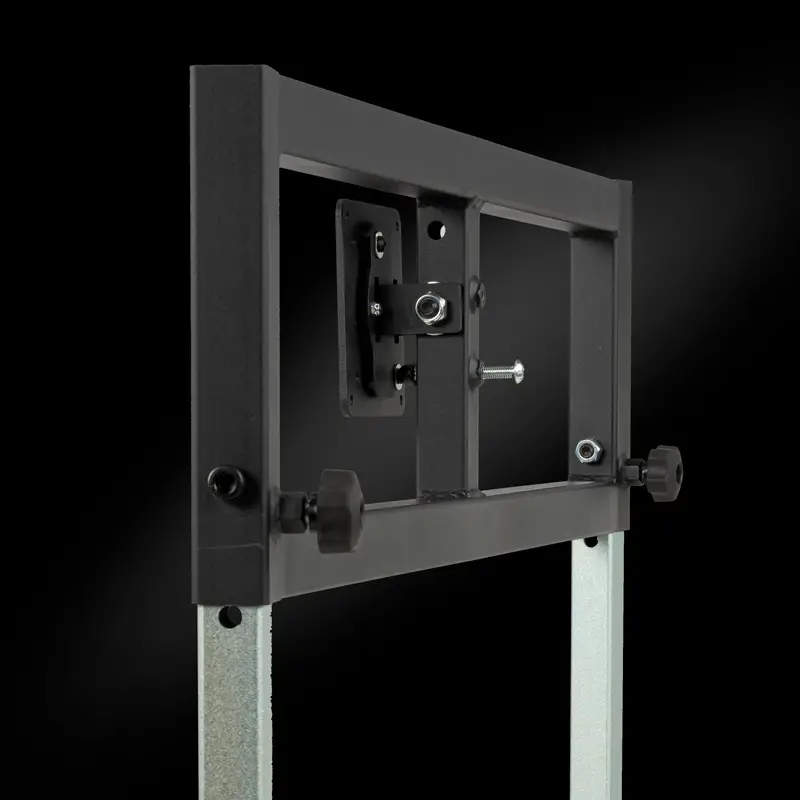

The mounting bracket is suitable for monitors with VESA mount up to 100x100mm or M4/M5 mounting hardware.

Stand has been tested with various common monitor sizes, curved or flat screens from 24″ to 49″ ultrawide curved monitors. TV sets with VESA mount patterns over 100x100mm require our heavy-duty mount bracket option.

Adjustable height, tilt and roll. Legs are slightly spread out to wrap around your sim racing cockpit or flight sim pit, achieving optimal immersion and FOV (field of view).

VESA adapter plate included.

Larger TV sets require our heavy-duty mounting bracket model HD.

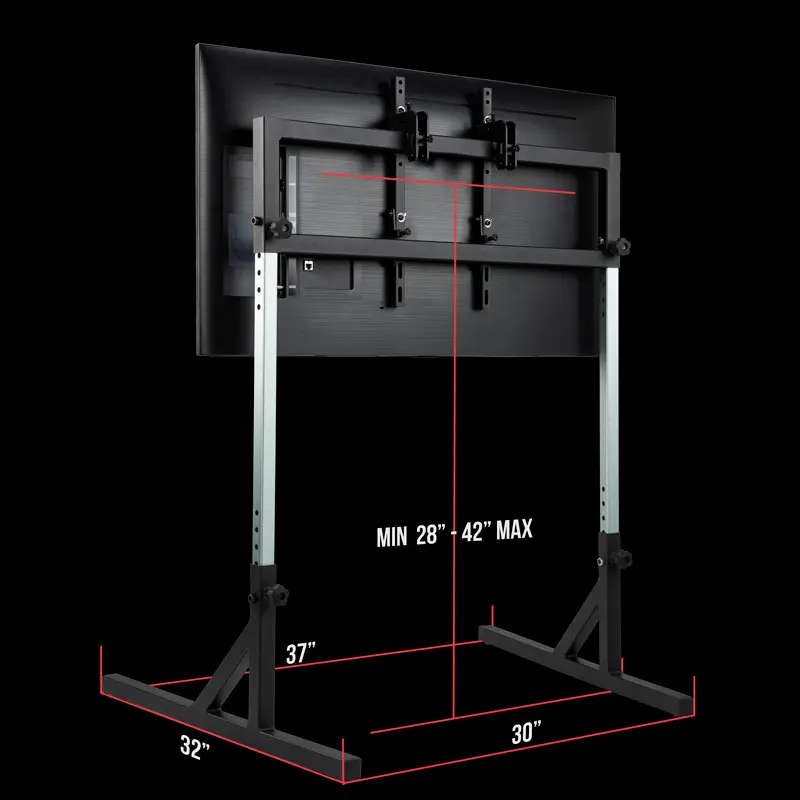

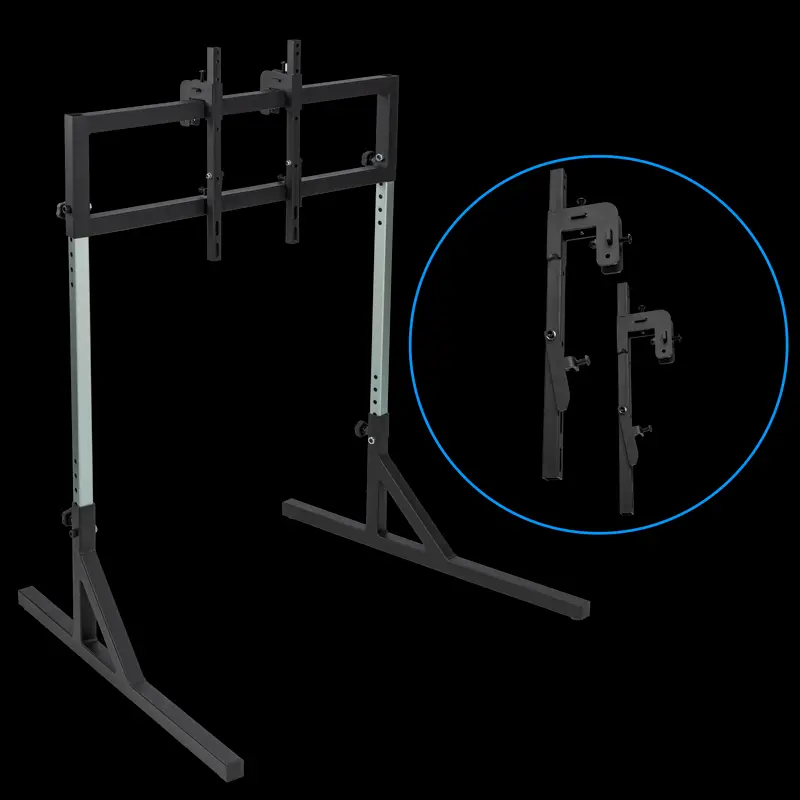

HD Model

The mounting bracket is suitable for TVs with VESA mount over 100x100mm or M6/M8 mounting hardware or up to 65″ TV set.

Stand has been tested with various TV sizes, curved or flat screens from 43″ to 65″ TVs.

Adjustable height, tilt and roll. Legs are slightly spread out to wrap around your sim racing cockpit or flight sim pit, achieving optimal immersion and FOV (field of view).

For monitors with VESA 75×75 or 100x100mm pattern refer to option stand model LD.

FAQs

Adjustable height, tilt, roll. Legs are slightly spread out to wrap around your sim racing cockpit or flight sim pit, achieving optimal immersion and FOV (field of view).

Single monitor stand parts are not interchangeable with triple monitor stand. During development our initial intention was to have single upgradable to triple. However triple stand has a lot more parts involved into center frame/legs, not needed in single monitor stand. We have made the decision to keep single monitor stand separate from triple in order to maintain its simple design at affordable cost.

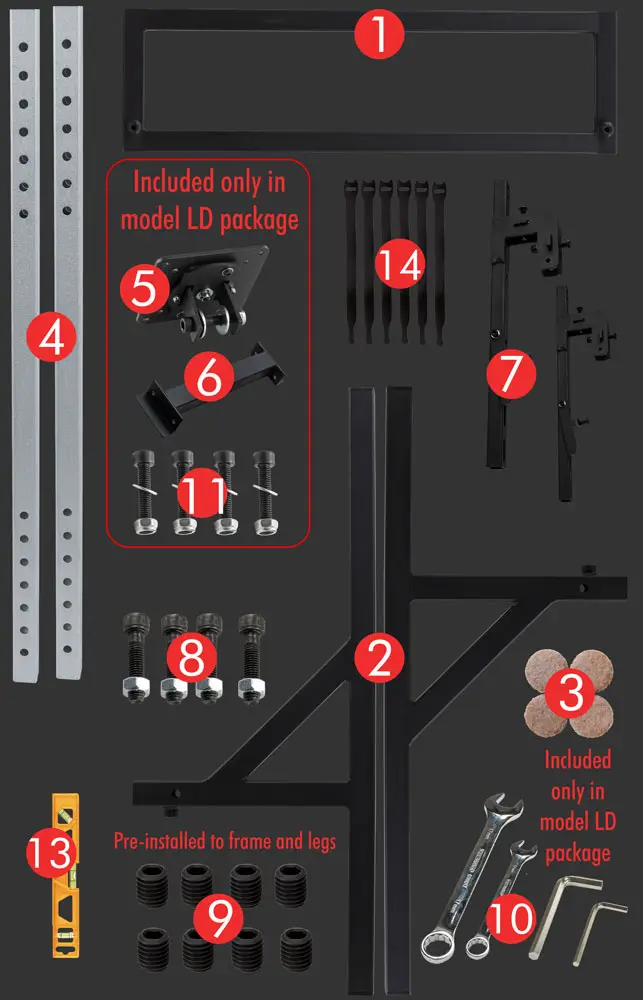

What is in the package?

1. Main frame
2. Legs (2)
3. Felt pads (4)
4. Vertical adjustment posts (2)
5. VESA 75x75mm/100x100mm plate adjustment assembly only included in model LD
6. Vesa transition bracket only included in model LD
7. HD brackets set
8. Safety pin bolt (4)
9. Set screws pre-installed to frame and legs(8)
10. Wrench set (4) HD kit has 5mm Allen key only 17mm open wrench, 10mm open wrench, 8mm Hex Allen key, 5mm Allen key
11. Vesa transition bracket to Vesa plate assembly hardware: Bolts (4), washers (4), nylock nuts (4) Only included in model LD
12А. Monitor mounting hardware Only included in model LDM4x12mm (4); M4x20mm (4); 5mm spacer washers (8)
12B. TV mounting hardware Only included in model HDM6x40mm (4); M6x50mm (4); M8x 40mm (4); M8x50mm (4); M6/M8 spacer washers: 5mm, 10mm, 20mm thick (4); M6 steel washers; M8 steel washers Hardware 12A and 12B are not pictured.

13. Torpedo level
14. Velcro cable ties, cable management HD bolts require Phillips screwdriver, not included in the package. Although we try to cover most common hardware, specific length and size bolts may be required and not included in our kit.

Depending on stand version, included in the package is either model LD adjuster VESA assembly for monitors with VESA pattern of 75x75mm or 100x100mm and M4/M5 mounting hardware, or model HD mounting brackets set for larger monitors(55/57”) or TV sets with pattern 100x200mm, 200x200mm, 200x400mm or 400x400mm and M6/M8 mounting hardware.
